Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • Variable speed drive
  • Contamination free pumping
  • Self priming and can safely run dry
  • Positive displacement, no back flow
  • Virtually maintenance free
  • Bi- directional (reversible) flow
  • Easy to install and operate
  • Accurate and repeatable flow rates
  • Instant start / stop and reverse facility
  • Explosion-proof
  • 24 x 7 continuous operation
  • Model: Peristaltic Pump

  • Pump Head: Made of engineering plastic (Supec)

  • Head Type: Spring loaded track – dual roller

  • Motor: Stepper motor

  • Torque of the Motor: 10 Kg./ cm

  • RPM: 1 to 200

  • Tube Size: Min.1mm to Max.4mm ID (1.5mm wall thickness)

  • Flow Rates: 0.2 ml/min to 280 ml/min (Depending upon the tube sizes)

  • Direction: Bi-directional (Clockwise & anti-clockwise)

  • Input Power: 230V AC / 50 Hz

  • Operation: 100% duty cycle

Electrolab

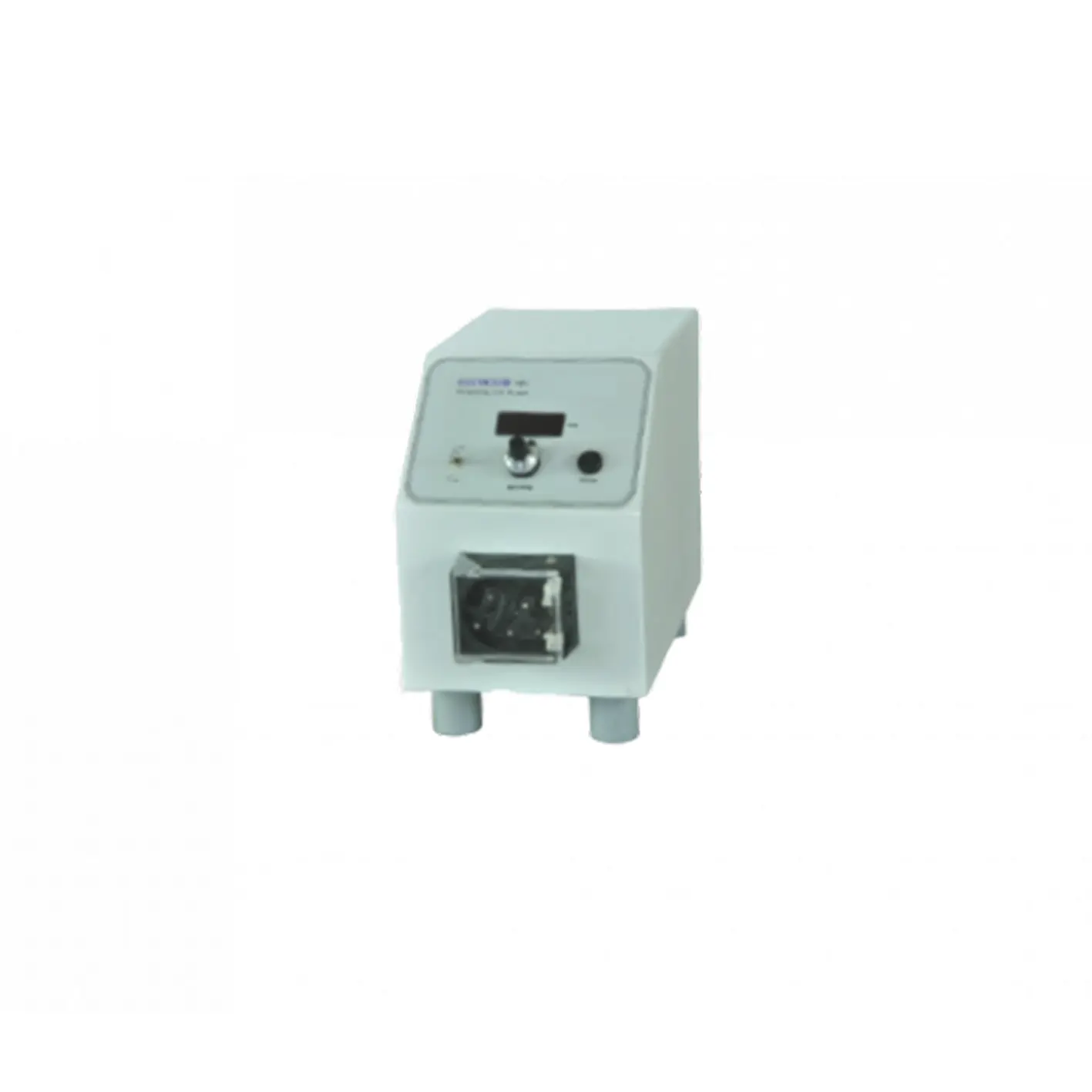

V Series Pump PP-50V

Play Video
Play Video
Weight 126 kg
