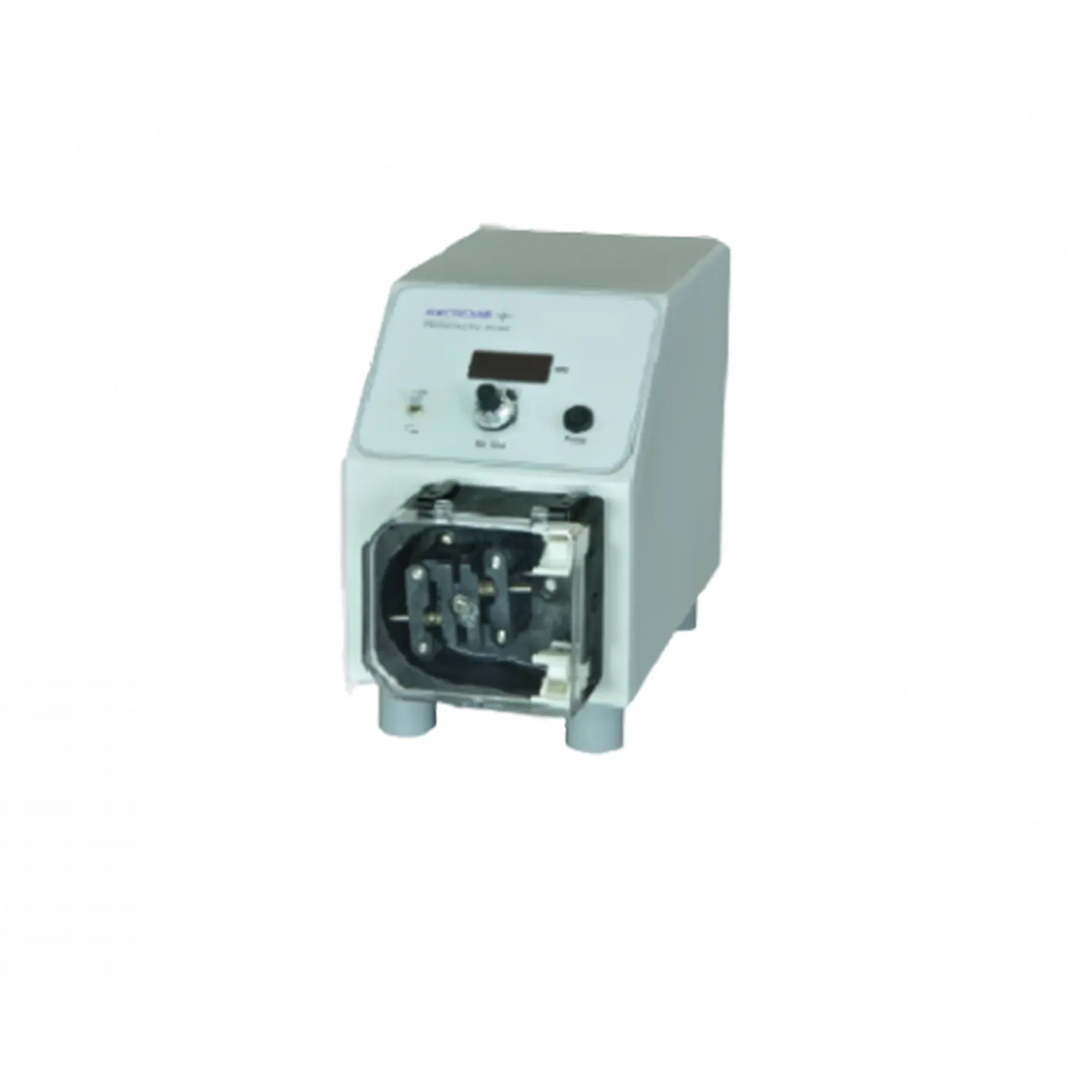

V Series Pump PP-201V
₨ 0
This pump offers variable speed control and bi-directional flow, ensuring contamination-free pumping with self-priming and dry run capabilities. It features easy installation, virtually maintenance-free operation, and precise, reliable flow rates. Designed for continuous 24/7 operation in explosion-proof environments, it includes instant start/stop and reverse functionality for versatile industrial use.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
- Variable speed drive
- Contamination free pumping
- Self priming and can safely run dry
- Positive displacement, no back flow
- Virtually maintenance free
- Bi- directional (reversible) flow
- Easy to install and operate
- Accurate and repeatable flow rates
- Instant start / stop and reverse facility
- Explosion-proof
- 24 x 7 continuous operation
- Model: PP-201 V
- Head type: Engineering plastic
- Motor: Stepper
- Motor torque: 18 kg
- RPM: 1 to 200
- Tube size (Bore): 3 mm to 12 mm
- Wall thickness (mm): 1.5
- Flow rate (ml/min): 5 – 3600*
- Discharge pressure (Bar): 2
- Maximum discharge height (Mtr.): 10
- Accuracy (%): ±1.5
| Weight | 126 kg |
|---|
