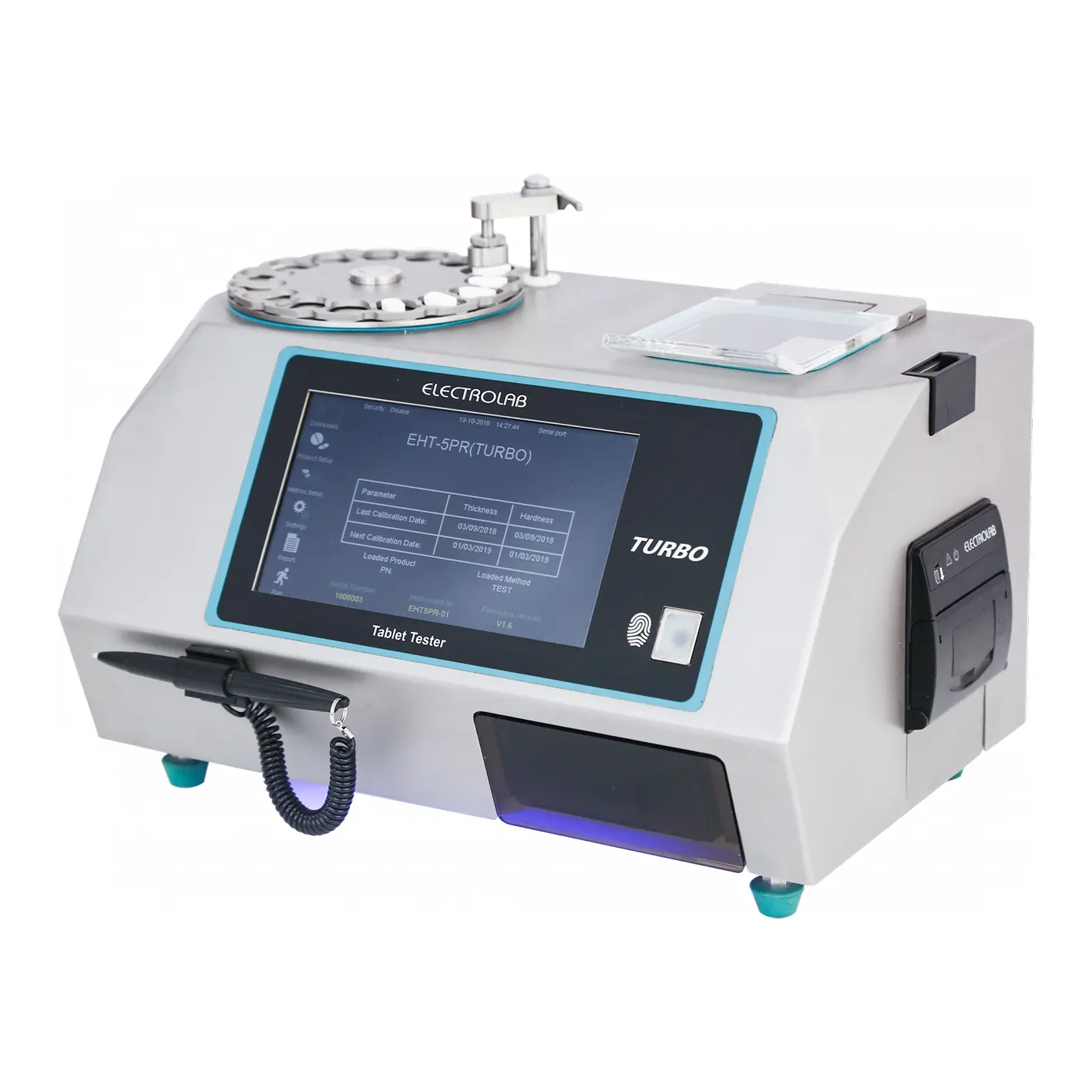

TURBO Tablet Tester EHT-5PR
₨ 0
The optical DO probe offers comprehensive tablet analysis with measurements for weight, thickness, diameter, length, width, and hardness. It features a user-friendly touch screen, constant speed and force measurement, and accommodates up to 100 samples per test. Enhanced by multi-groove jaw technology for maintenance-free operation, it includes advanced security, programmable modes, and an embedded printer for efficient reporting and compliance.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
Features of optical DO probe:
Measures 5 parameters – Weight, Thickness, Diameter (Length), Width and Hardness
Full color intuitive touch screen display
Constant speed and constant force measuring principle l
Up to 100 samples per test
Jaw with multi groovetechnologyallows maintenance – free operation
3 level user management security
Indicator for calibration due date
Light and audio alarm indicator for Instrument status
Programmable calibration and verification modes
Auto / Manual mode with programmable delay time
Adjustable delay between the samples
Tablet manager tray for easy carrying of tables from weighing scale
User selectable templates for printing reports
Protective cover to protect operator from inhaling tablet dust from tablets that ‘explode’
Embedded printer for printing test results, validation and calibration reports
1000 products
50 Methods
10000 reports
250 users
finger print module
Audit trail
log book
External thickness measurement to improve test speed
- Model: EHT-5PR TURBO
- Parameter: Weight, Internal Thickness/ External Thickness, Diameter/ Length, Width, Hardness
- Compliance: Body can be Stainless steel (S.S) to comply with cGMP regulations or painted MS
- Display: 7.0″ touch screen display
- Samples per Test: Upto 100
- Adjustable delays between the samples: 1 sec to 99 sec
- Measuring principle: Constant speed
- Printing of data and graphs: User defined templates
- Hardness Range: 3N – 800N
- Accuracy: ±1N
- Jaw Opening: 40mm (Upto 65mm optional)
- Jaw: Dual (Big & small grooves)
- Units for Hardness: N,Kp,Sc,User defined
- Units for Thickness/diameter: mm/inch
- Constant speed setting: 1 mm to 3 mm in step of 0.1 mm
- Compatible weighing balance: Sartorious/ Mettler Toledo/ Schimadzu/ contech/Ohaus/ Radwag
- Security: Multi level user management (flexible 10 role)
- Hardness/ thickness calibration: 2 point calibration
3 point verification linearity - Report Format: User defined tabular format
- Interface: LAN and serial
- Embedded Printer: Yes
| Weight | 126 kg |
|---|
