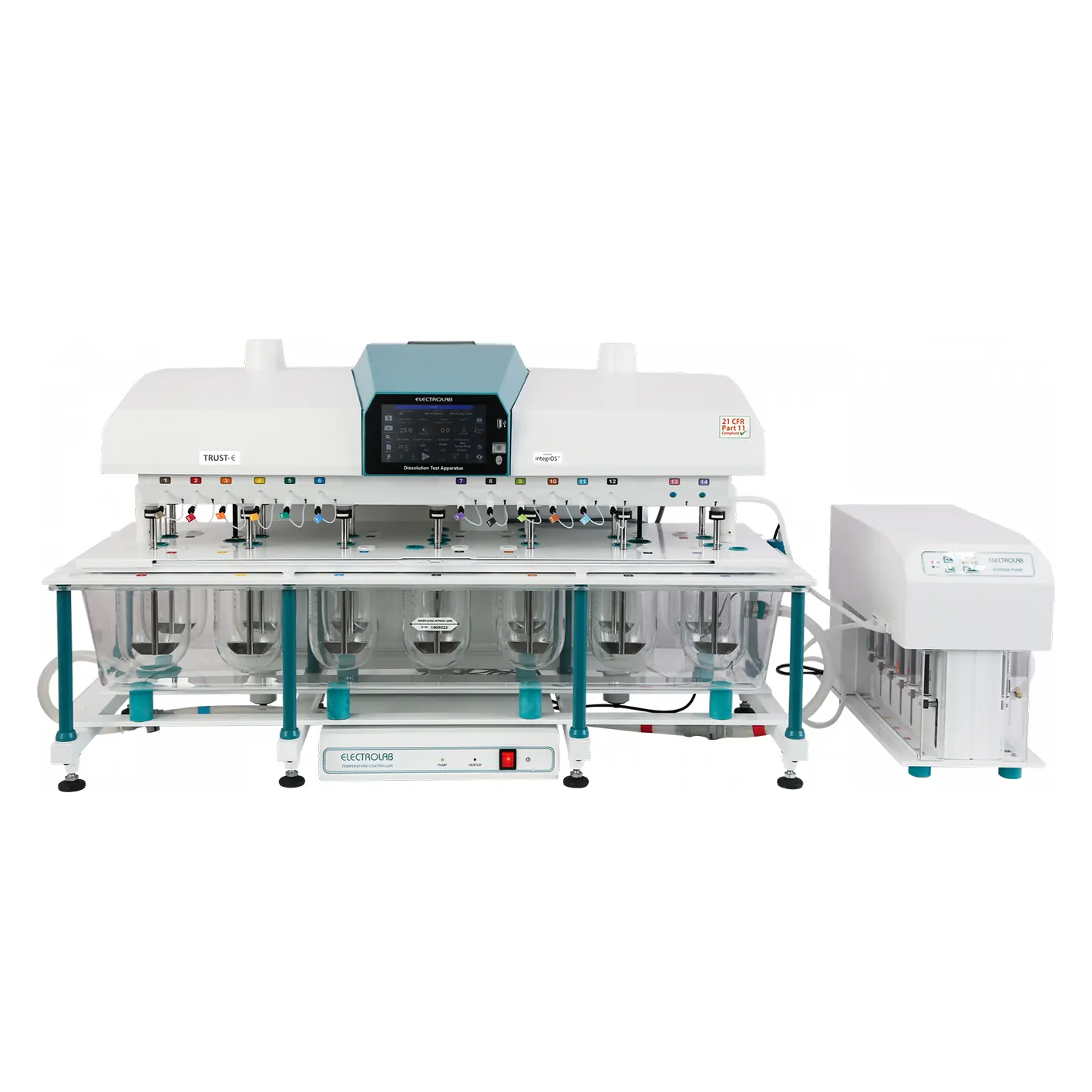

TrustE-14 Dissolution Tester Manual Syringe Sampling
₨ 0
This 7″ TFT touch screen dissolution tester ensures precise testing compliant with USP, IP, Ph. Eur., and JP standards. Featuring LAN connectivity for centralized printing and multilevel security, it supports up to 250 users with programmable roles. Its innovative TimeAction™ function allows seamless media changeover and continuous testing, while automatic stirrer height adjustment conforms to USP 1, 2, 5, and 6 standards.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
- 7″ TFT touch screen display
- LAN connectivity allows central printing
- Multilevel security with password for 250 users with user programmable role
- Alphanumeric data entry of product and user details
- Complies with USP, IP, Ph. Eur. and JP specifications
- Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
- Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
- Easy Snap™
-Fit shaft locking mechanism for positive
engagement and wobble free operation - Molded clear water bath
- Easy to empty and clean water bath with bottom drainage
- Precise individual vessel centering system
- Adjustable leveling of instrument
- Vibration free smooth motorized lift movement
- Isolated temperature controller and water circulating pump (vibration-free & precise)
- 1000 programmable products
- 24 programmable sampling intervals
- 10000 test report storage
- Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers
- Designed to minimize routine validation
- Programmable report template
- Report for online validation of test, product, error log during the test, logbook, audit trial
- 21 CFR complaint, Biometric, Vibro
- Programmable sample volume from 1 ml to 20 ml
- Audio-visual indicators for system status
- Power failure detection and auto recovery facility
- Delight technology enabling audio visual indication of instrument status
- Finger print module
- 250 users
- Audit trail
- E-signature
- Intense rinse
- Rinse by purge
- Rinse by loopback
- Model: Trusté-14 with Manual Syringe Sampling
- No. of stations: 14
- Speed range: 20 RPM to 300 RPM
- Speed accuracy: +0.5 RPM
- Temperature range: 20°C to 40°C (extended 10°C to 40°C and 20°C to 55°C optional)
- Temperaturccuracy: +0.1°C
- Display resolution: 0.1°C
- Product storage: 1000
- Display: 7″ TFT touch screen display
- Test Report storage: 10,000
- Sample interval: 1 min to 999 hrs, 59 min
- Interface port: Ethernet, RS-232, RS-485
- Temperature controller: Heater: 1kW, SS 316 with thermal protection
- Stirrer drive: High performance BLDC drive (maintenance-free)
- Vessel capacity: 150ml, 250ml, 1L
- Water bath: One piece moulded clear
- Bath capacity: 28 L
- Dimensions (WxLxH): 521 mm x 1150 mm x 663 mm
- Weight: 90 Kg
- Electrical power: 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp
110 VAC, 50/60 Hz, 1.3 kW/G Amp
| Weight | 126 kg |
|---|
