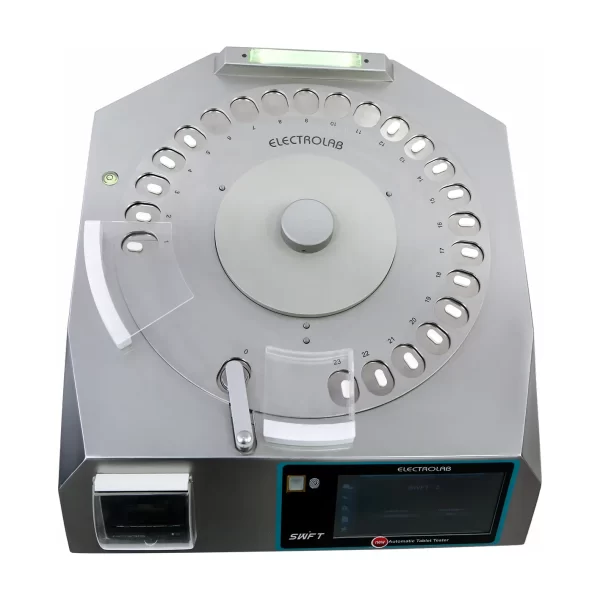

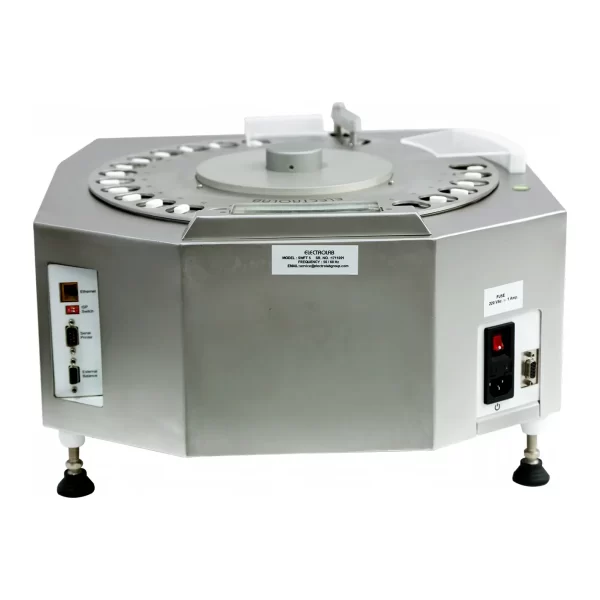

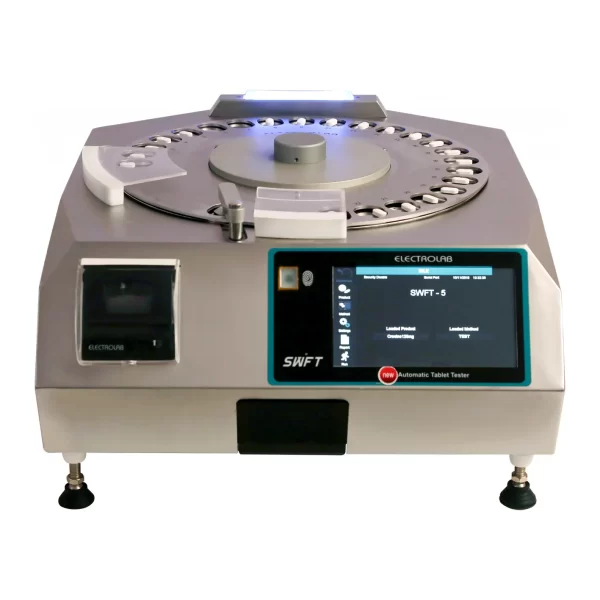

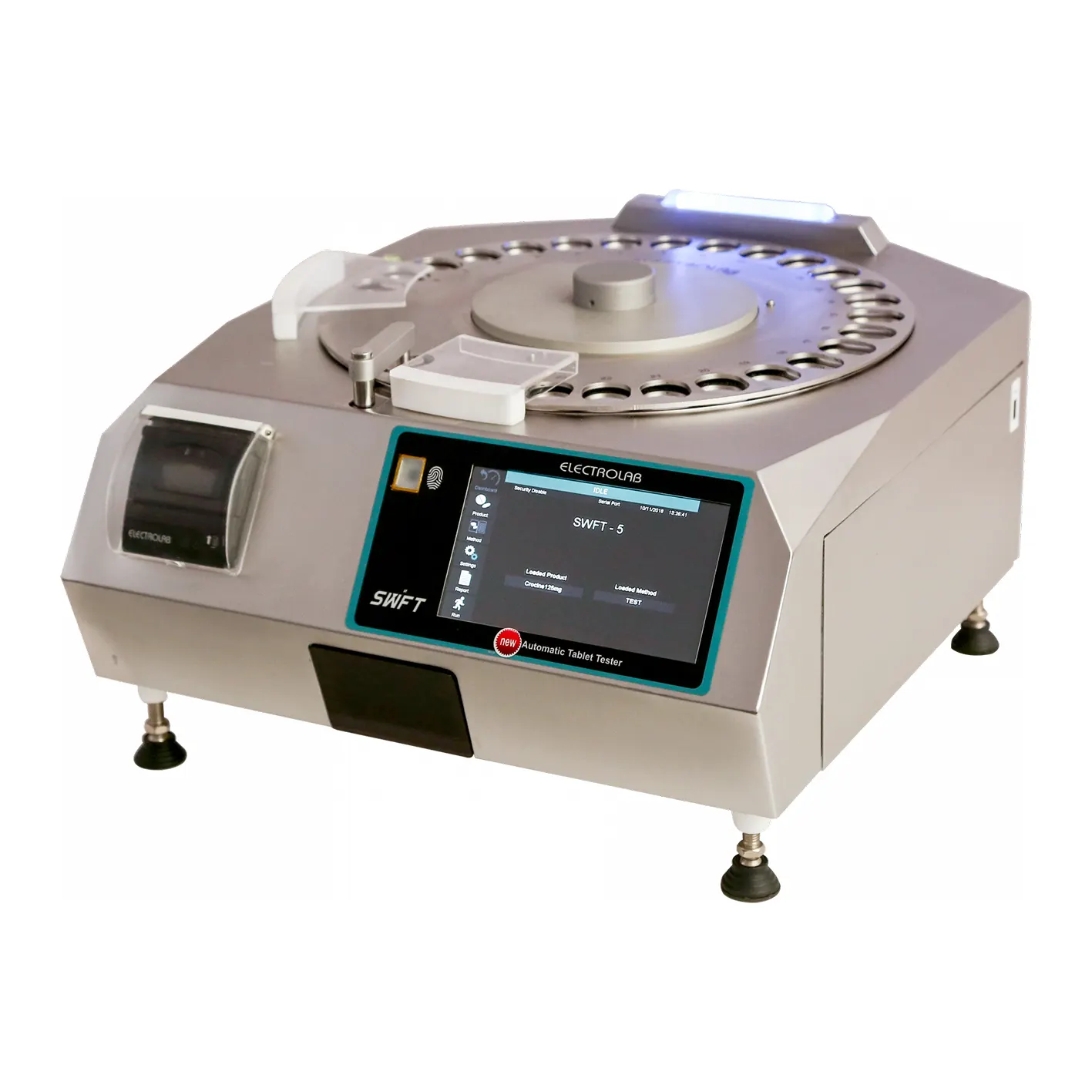

Tablet Hardness Tester SWFT-5
₨ 0
This instrument is a comprehensive and user-friendly system for pharmaceutical testing, measuring key parameters like Weight, Thickness, Diameter (Length), Width, and Hardness. It features advanced technology including a full-color touch screen display, constant speed and force measurement, and accommodates up to 21 samples per test.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
Measures 5 parameters – Weight, Thickness, Diameter (Length), Width and Hardness
Full color intuitive touch screen display
Constant speed and constant force measuring principle
Up to 21 samples per test
Multilevel level user management security
Indicator for calibration due date
Light and audio alarm indicator for Instrument status
Programmable calibration and verification modes
User selectable templates for printing reports and graphs
Protective cover to protect operator from inhaling tablet
dust from tablets that ‘explode
External Weighing balance
Finger print sensor
Audit trial
E-signature
1000 products
50 methods
10000 reports
log book
250 users
Built in thermal printer
- Model: EHT-5PR TURBO
- Parameter: Weight, Internal Thickness/ External Thickness,
Diameter/ Length, Width, Hardness - Hardness working principle: Constant speed
- Display: 7.0″ touch screen display
- Constant speed range: 1 mm/sec to 3 mm/sec
- Adjustable delays between the samples: 1 sec to 99 sec
- Measuring princile: Constant speed
- Printing of data and graphs: User defined templates
- Hardness Range:3N – 800N
- Accuracy: ±1N
- Diameter/length measurement range: 2 – 26 mm
- Diameter/length accuracy: ± 0 .05 mm
- Width measurement range: 2 – 26 mm
- Width accuracy: ± 0 .05 mm
- Units for Hardness: N,Kp,Sc,User defined
- Units for Thickness/diameter: mm/inch
- Compatible weighing balance: External balance interface
- Units for weight: g or mg
- Size (W x D x H): 400 x 476 x 281 mm (With hood)
- 21 CFR Part 11 Compliance: Yes with integrOS Pro
- Electrical power: 230 VAC, 50/60 Hz, 100 W/Amp
110 VAC, 50/60 Hz, 100 W/Amp - Weight: 26 kg
| Weight | 126 kg |
|---|
