Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • Complies with USP, IP and Ph. Eur. specifications
  • Supports 2 USP baskets
  • Each basket is controlled by independent timer and motor
  • Snap-click TM loading and a swivel free basket movement
  • Green illumination for better visibility of disintegration process
  • Programmable temperature controller
  • Auto parking of the baskets at the top position at the end of the test
  • Ergonomically designed splash proof panel
  • External probe for beaker temperature validation
  • Dual range timer
  • Maintenance-free smooth drive
  • Bathless heating (saves water, time, electricity)
  • Bathless Disintegration Tester is maintenance-free
  • Specially designed efficient heater plates for vessel, heats the media quickly
  • Model: EDI-2I
  • Number of basket: 2
  • Number of strokes: 30 + 0.5 strokes/minute
  • Stroke length: 55 mm + 2 mm
  • Number of tubes per basket: 6
  • No. of motors: 2
  • Motor type: DC stepper motor of 6V DC and
    3.5 kg cm torque
  • Range: 20 C to 39.9 C
  • Resolution: 0.1oC
  • Display (Temp): 3 digit LED
  • Sensor: RTD
  • No. of timers: 2
  • Display (Timer): 4 digit LED each
  • Power consumption: 490 VA
  • Dimension ( W x L x H): 373 x 364 x 504
  • Weight:- Net : 23 kgs
    Gross : 32 kgs
Electrolab

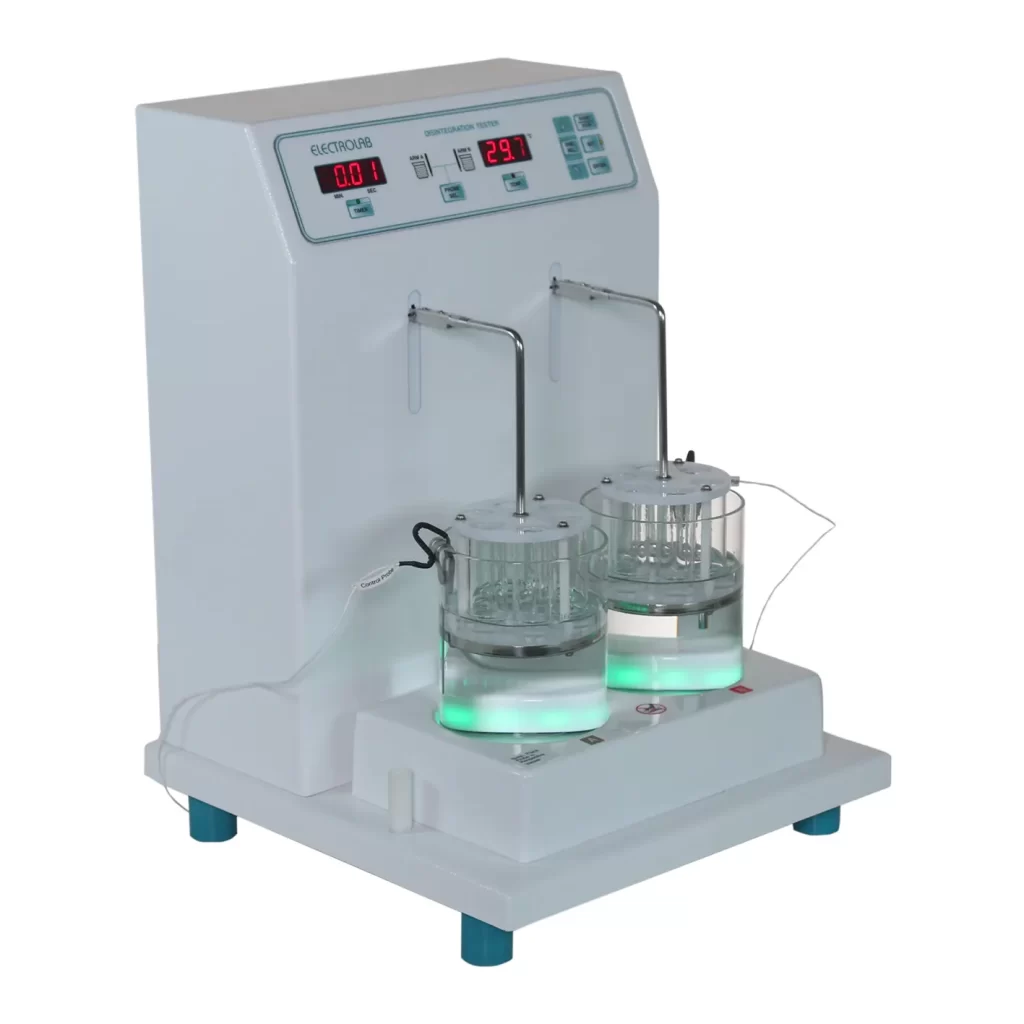

Tablet Disintegration Tester EDI-2I

Tablet Disintegration Tester EDI-2I-1
Weight 126 kg
