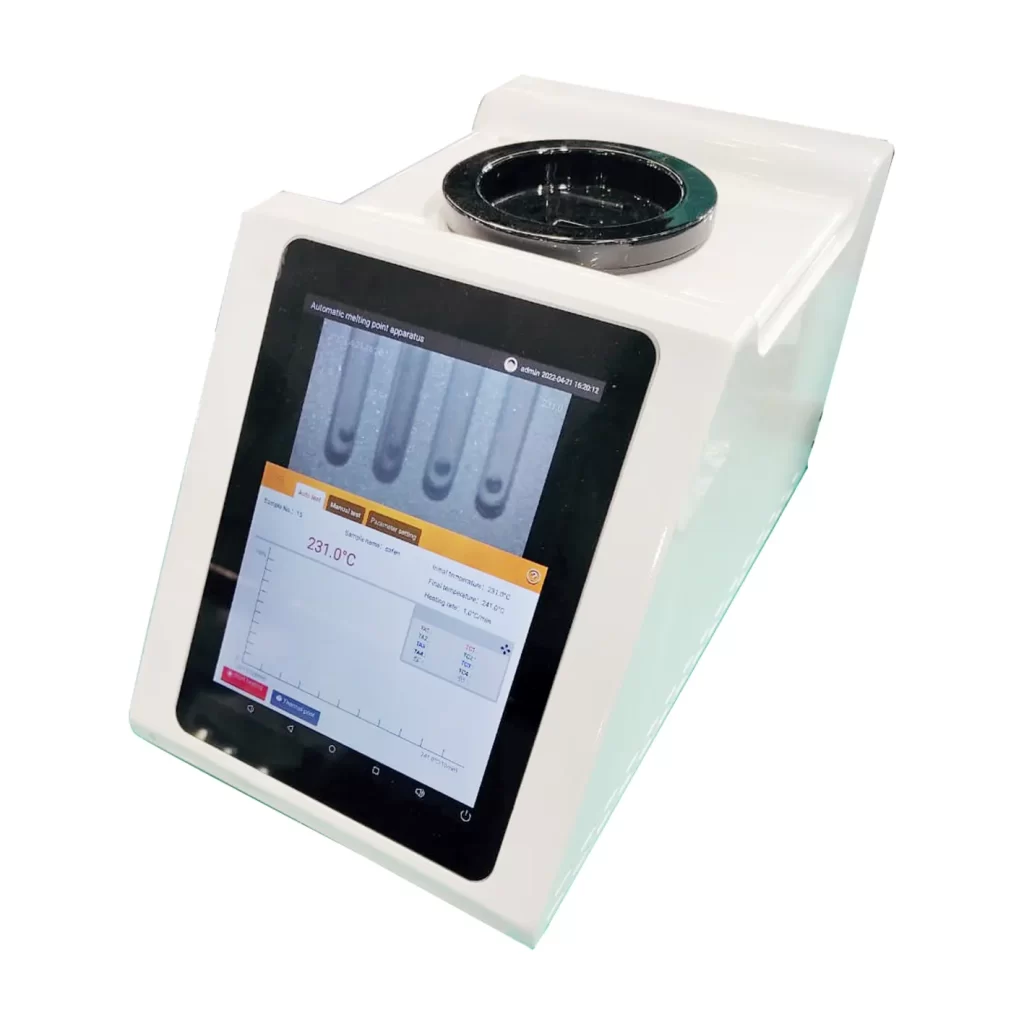

Melting Point Apparatus EMA-4M

₨ 0

Categories: Electrolab, Lab, Physical Tester

This system offers continuous video monitoring and replay for real-time phase transitions across 4 samples, each tracked independently. It features an 8″ full-color touch screen with an Android-based interface, ensuring compliance with GLP, GMP, and FDA 21 CFR Part 11 standards, making it ideal for IPQC cubicles in pharmaceutical settings.

This product is currently out of stock and unavailable.

Description
Additional information
Reviews (0)

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

Features

Video Recording for Continuous Monitoring
Video recording function to visualize real-time phase transition
Video replay function to revisit past trials
Number of samples
4 samples during each test
Records and tracks each sample result independently
Multi-user Identification
8″ full color capacitive touch screen display
User interface based on Android platform
Compliance
Compliant with GLP, GMP(EU,UPS&CN) and FDA 21 CFR part 11
Perfect companion for IPQC cubicals
Screen Design
8″inch full color capacitive touch screen disply
User interface Android Platform
Data processing and exporting
Compliance
Compliant with GLP, GMP(EU,UPS&CN) and FDA 21 CFR part 11
Perfect companion for IPQC cubicals

Specifications

Model: EMA-4M
Display: 8″ capacitive touch screen
Temperature range: Room Temperature – 400°C
Temperature resolution: 0.1°C
Repeatability: 0.2°C (heating rate: 0.20°C/min)
Accuracy: ±0.4°C (<200°C), ±0.7°C (<300°C)
Heating rate: ±0.4°C (<200°C), ±0.7°C (<300°C)
Standard capillary tube: Diameter: 0.9~1.1mm,
Wall thickness: 0.10~0.15mm
No of samples: 4 pcs/batch
User management: 20
Communication ports: USB, RS232, Wi-Fi, Internet
Manual measurement: Yes
Automatic measurement: Yes
Memory: 16 GB
Conformity to FDA CFR 21 part 11: Yes
Audit trail function: Yes
Printer interface: Thermal and laser printer
Power supply: 100-240VAC 50Hz/60Hz
Dimension (L ,W, H): 305 * 220* 230m m
Power: 120W

Weight	126 kg
