Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • Complies to current USP Apparatus 7 specifications
  • Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
  • Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 7
  • 20 programmable protocols with 24 sample intervals
  • 2 level security with password
  • Touch screen with graphical display for user friendly operation
  • Dip rate ranges between 5 to 50 dpm with an accuracy of ±1%
  • Programmable hold, drain time and programmable dip rate in each row
  • Temperature range between 30° C to 40° C with an control accuracy of ± 0.2° C
  • Online validation of dpm and temperature
  • Rugged clear acrylic Water bath
  • PC & LAN Connectivity allows centralized printing, storing and sharing of data
  • Retractable curtain to prevent media loss by evaporation
  • Can be configured with 100 ml and 1000 ml capacity vessels along with vessel tray
  • Model: ERD-07
  • Material of Construction: SS 316
  • Water Bath: Clear acrylic moulded water bath
  • Bath capacity: 44 litres
  • No. of rows: 6
  • Vessel capacity (ml): 300
  • Reciprocating height (mm):100
  • No. of dips rate (dpm): 5 to 50
  • Accuracy (°C): ± 0.2
  • Controlled temperature range (°C): 30 to 40
  • Display: Touch screen
  • Motor: Single shaft Motor 10 kg cm
  • Heater: 1000 Watts, 230 V AC, S. S 304
  • Mains fuse: 1 Amp
  • Heater fuse: 6 Amp
  • Dimension (L X W X H): 795 X 675 X 780 mm
Electrolab

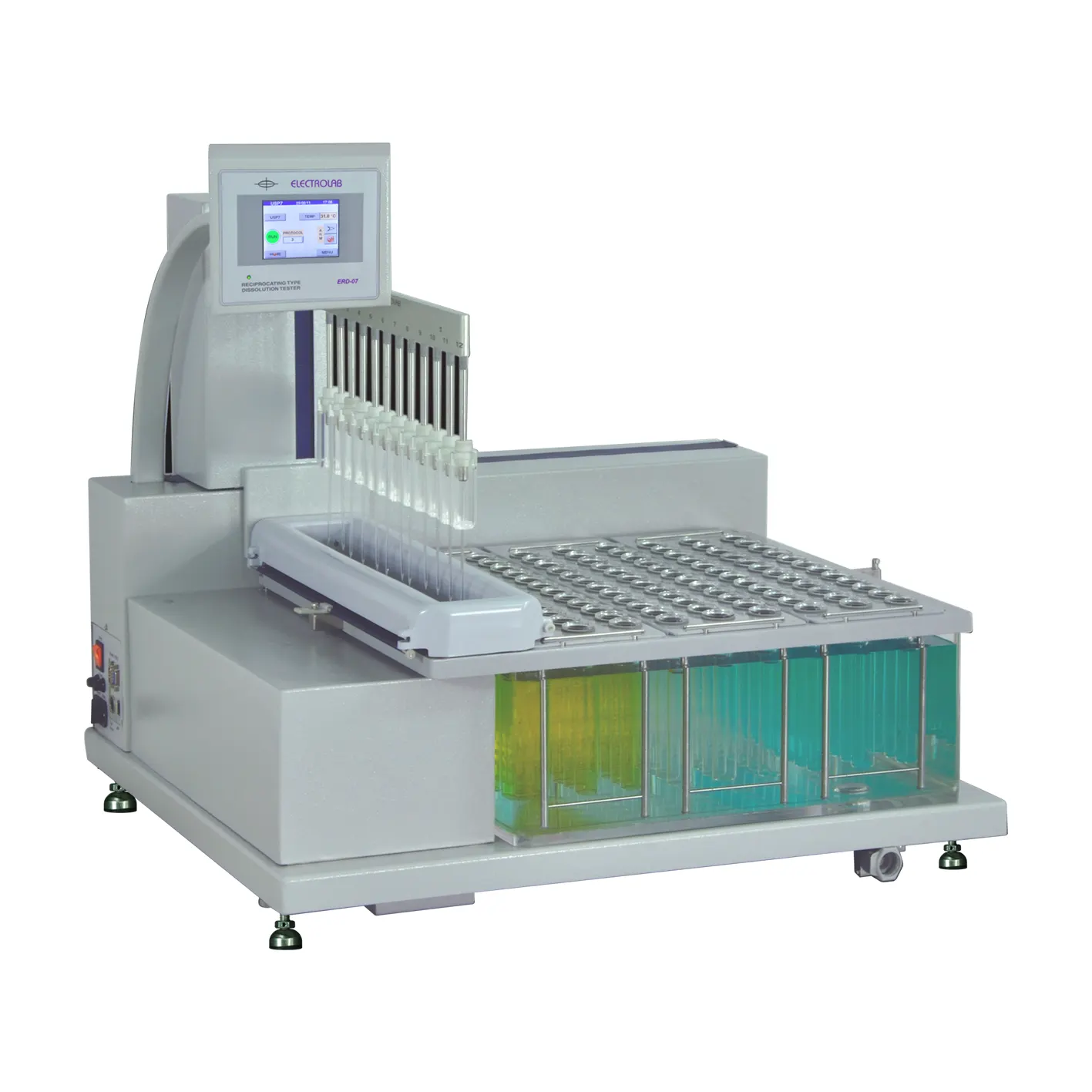

ERD-07 Reciprocating Dissolution Tester

Play Video
Play Video
Weight 126 kg
