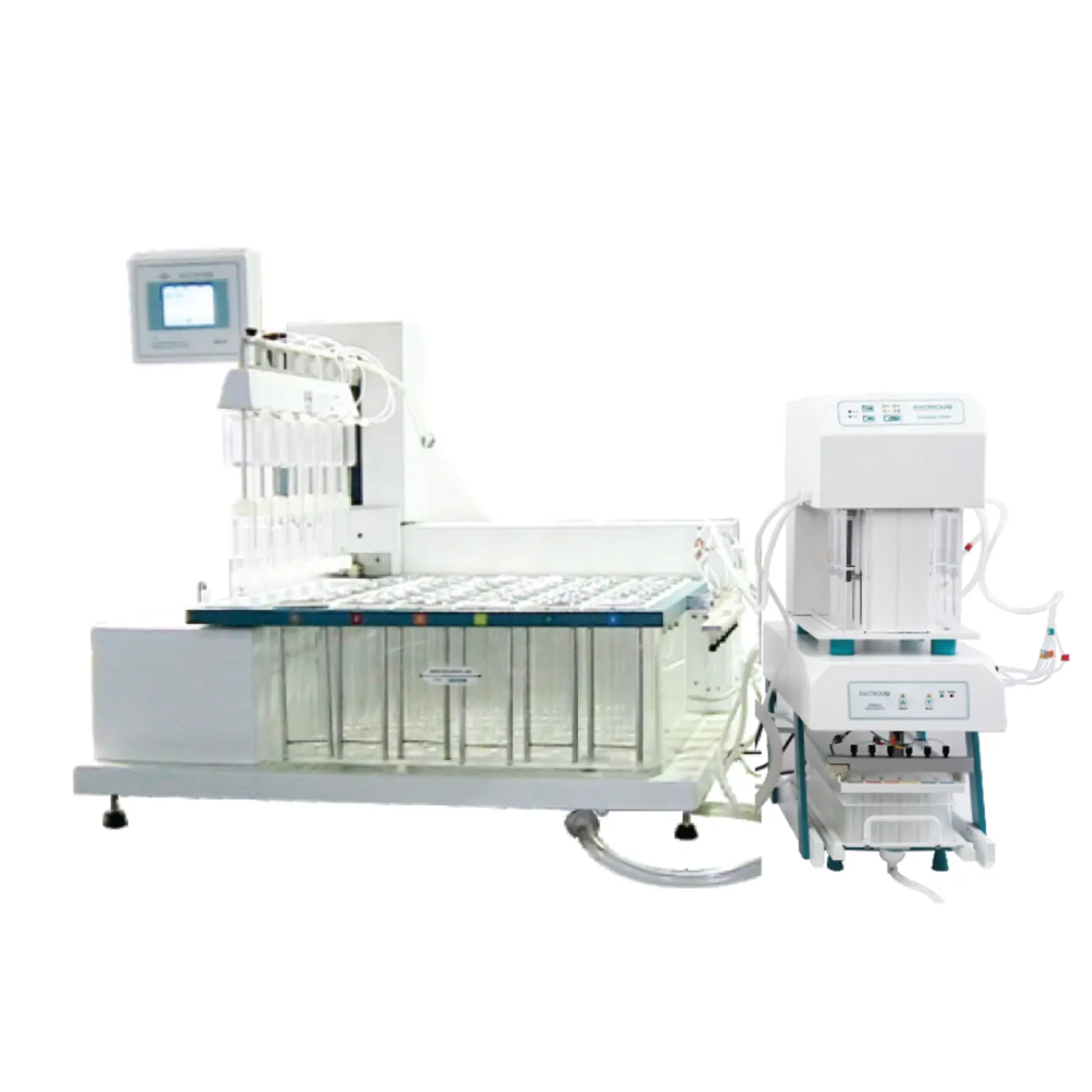

ERD-03 Reciprocating Dissolution Tester
₨ 0
Advanced USP Apparatus 7 dissolution tester with customizable configurations, touch screen interface, and precise temperature control. Features programmable dip rate, online validation, and PC connectivity for centralized data management.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
- Complies to current USP Apparatus 7 specifications
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 7
- 20 programmable protocols with 24 sample intervals
- 2 level security with password
- Touch screen with graphical display for user friendly operation
- Dip rate ranges between 5 to 50 dpm with an accuracy of ±1%
- Programmable hold, drain time and programmable dip rate in each row
- Temperature range between 30° C to 40° C with an control accuracy of ± 0.2° C
- Online validation of dpm and temperature\
- Rugged clear acrylic Water bath\
- PC & LAN Connectivity allows centralized printing, storing and sharing of data
- Retractable curtain to prevent media loss by evaporation
- Can be configured with 100 ml and 1000 ml capacity vessels along with vessel tray
- Model: ERD-03
- Material of Construction: SS 316
- Water Bath: Clear acrylic moulded water bath
- Bath capacity: 44 litres
- No. of rows: 6
- Vessel capacity (ml): 300
- Reciprocating height (mm): 100
- No. of dips rate (dpm): 5 to 50
- Readable temperature range (°C): 15 to 50
- Controlled temperature range (°C): 30 to 40
- Display: Touch screen
- Motor: Single shaft Motor 10 kg cm
- Heater: 1000 Watts, 230 V AC, S. S 304
- Mains fuse: 1 Amp
- Heater fuse: 6 Amp
- Dimension (L X W X H): 795 X 675 X 780 mm
| Weight | 126 kg |
|---|
