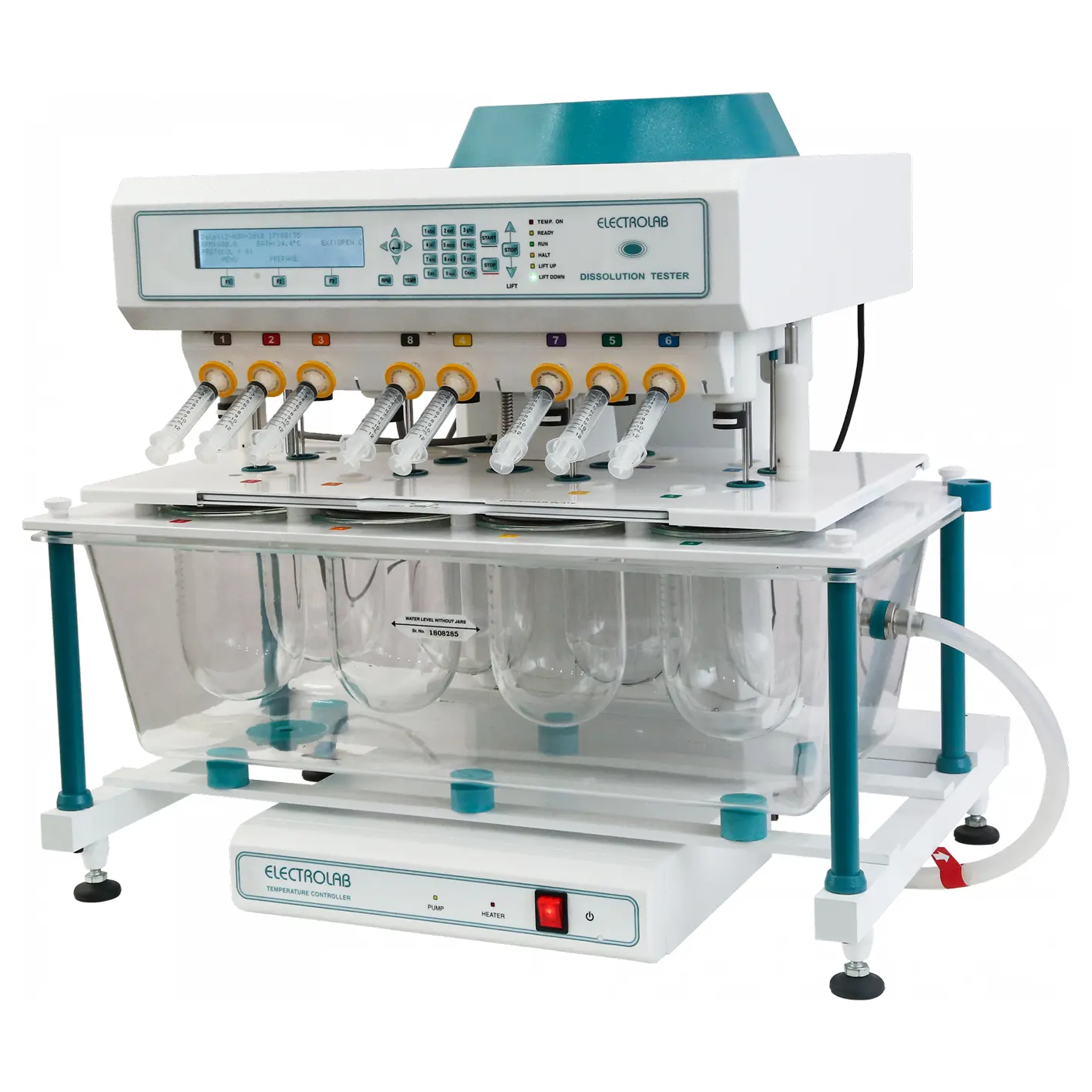

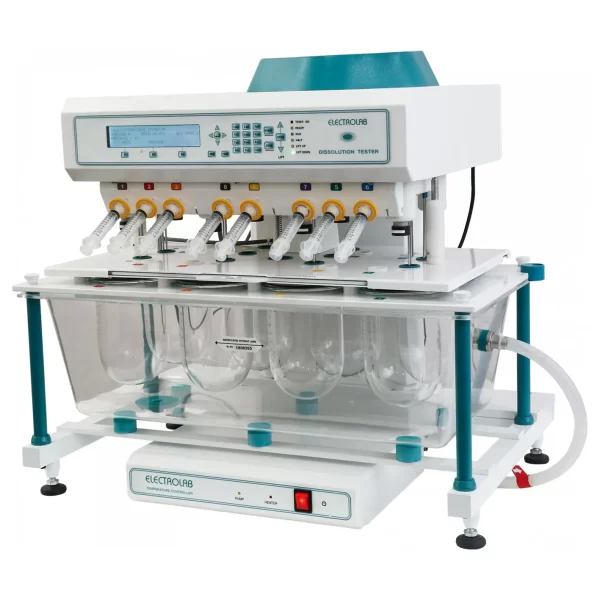

Dissolution Tester-Inspire 8 Manual Syringe Sampling

₨ 0

Categories: Dissolution, Electrolab, Lab

This dissolution tester features a user-friendly LCD display, multilevel security, and compliance with global pharmacopeia standards. It includes unique TimeAction™ for sustained release testing, automatic stirrer positioning, and precise temperature control (20°C to 55°C) with ±0.10 accuracy. Additional highlights include motorized lift, programmable protocols, and comprehensive validation and error logging capabilities.

This product is currently out of stock and unavailable.

Description
Additional information
Reviews (0)

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

Features

LCD display of 40 characters and 4 lines for user friendly operation
Multilevel security with password
Alphanumeric data entry of product and user details
Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
Complies with USP, IP, Ph. Eur. and JP specifications
Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation
Printing through RS 232
Programmable Wake Up Facility for temperature to save man hours.
Bath temperature range between 20° to 40°C/20° to 55°C(optional) is controlled with an accuracy of ±0.10
Isolated water circulating pump for precise temperature control of the water bath.
Easy to empty & clean water bath with bottom drainage.
Vibration free smooth motorized lift movement
RPM range between 20 to 3000 with an accuracy of ±1 RPM
20 programmable protocols and 24 programmable sampling intervals.
Instrument Accessories like paddle, basket & vessels are laser mark with serial numbers.
Reports for online validation of test, monograph and error log during the test
Power failure detection facility
Programmable wake-up for temperature control
Audio-visual indicators for system status
Individual temperature probe for monitoring temperature of each vesse

Specifications

Model: Inspire-08 Manual Syringe Sampling
Speed range: Variable speed from 20 to 300 RPM
Speed accuracy: ±1 RPM
Temperature range: 20◦C to 40◦C
Temperature accuracy: ±0.1◦ C
Display: 40 x 4 character backlighted LCD
No. of protocols: 20 maximum
Sample interval: Maximum 24 of 1 min to 23 hrs, 59 min
Printer interface: Serial port
Printer supported: 80 column Dot Matrix printer
Bath: Clear acrylic molded water bath
Heater: 1 kW/230 VAC, material 5.5. 304 with sensor
Vessel capacity: 150 ml, 250 ml, 500ml, 1 L
Electrical power: 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp
110 VAC, 50/60 Hz,1.3 kW/10 Amp
Dimensions ( W x L x H): 517 x 712 x 665
Weight: 68 KG
