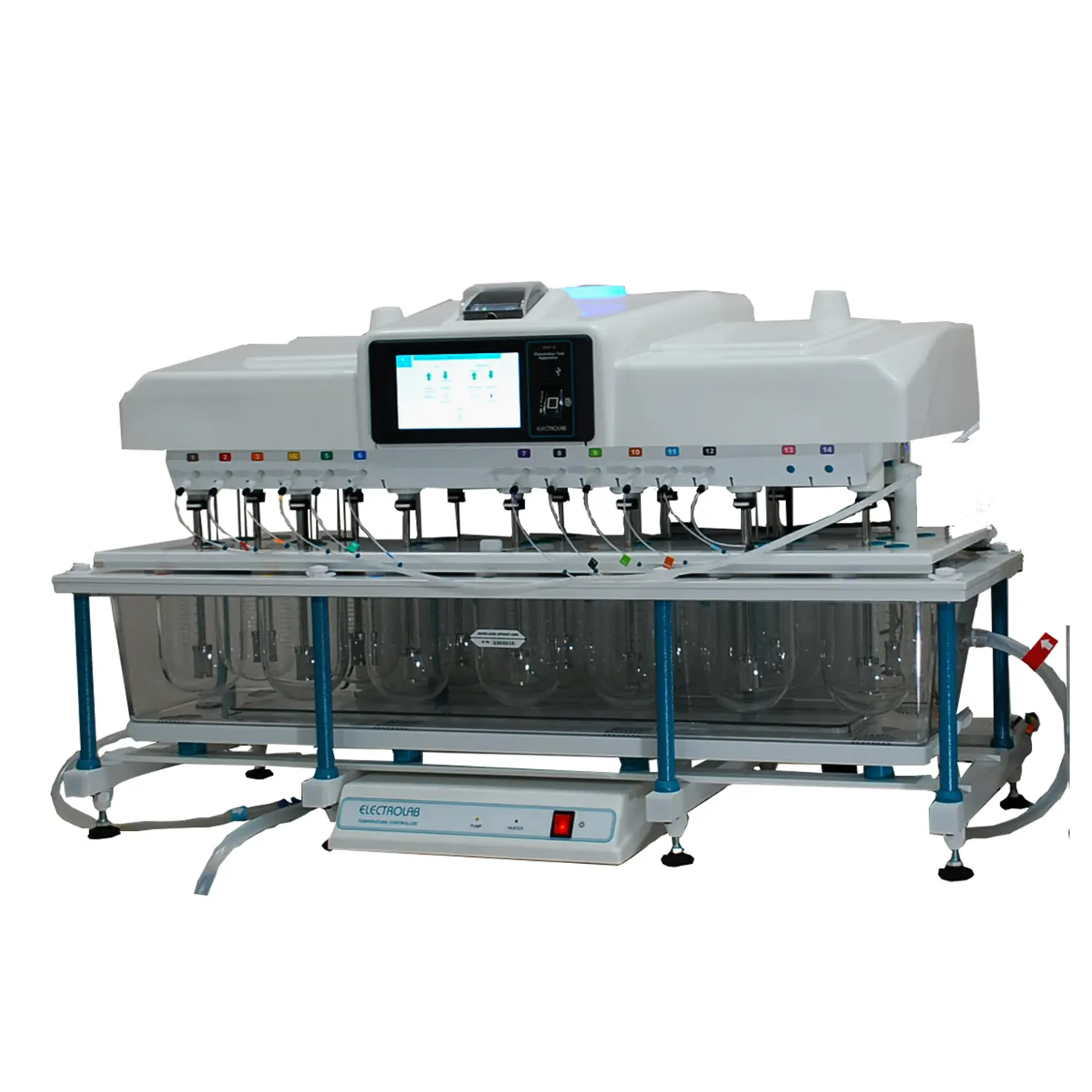

Dissolution Tester TrustE-14 Gen 2
₨ 0
The TrustE-14 Gen 2 Dissolution Tester features a vibration-free motorized lift, isolated temperature control, and a water pump for precision. It supports 1000 programmable products, 24 sampling intervals, and stores 50,000 test reports. Accessories are laser-marked, and it includes 10 programmable report templates, minimizing routine validation.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
- 7″ TFT touch screen display
- LAN connectivity allows central printing
- Multilevel security with password for 250 users with user programmable role
- Alphanumeric data entry of product and user details
- Complies with USP, IP, Ph. Eur. and JP specifications
- Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
- Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
- Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation
- Molded clear water bath
- Easy to empty and clean water bath with bottom drainage
- Precise individual vessel centering system
- Adjustable leveling of instrument
- Vibration free smooth motorized lift movement
- Isolated temperature controller and water circulating pump (vibration-free & precise)
- 1000 programmable products
- 24 programmable sampling intervals
- 50000 test report storage
- Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers
- Designed to minimize routine validation
- 10 Programmable report template
- Report for online validation of test, monograph, error log during the test
- Programmable sample volume from 1 ml to 20 ml
- Power failure detection and auto resume facility
- D’light technology enabling audio visual indication of instrument status
- Data management ( back up of Data for indivisual machine via FTP)
- machine to machine transfer data for product method and Security via FTP
- Biometric log in system (optional ) symbol
- Disaster management
- Reports can be save in the PDF Format via FTP
- Usage history of machine ( stirrer, heater, Total number of test performed Etc )
- Report sorting according to Review By / Approved By/Based on role access
- View report on Screen
- Time synchronisation based on NTP, Domain
- Electrolab user Active/ Inactive permission set by Client
- Audit modification events Old Data/ New Data
- on field Software upgradation
- static / DHCP IP Module
- Programable Tolerences for Temperature and RPM
- Model: TrustE-14 Gen 2
Speed range: Variable speed from 20 to 300 RPM
Speed accuracy: ±0.5 RPM
Temperature range: 20⁰ to 40⁰ C (Extended range 10⁰ to 40⁰ C, 10⁰ to 55⁰ C and 20⁰ to 55⁰ C Optional)
Temperature accuracy: ± 0.1⁰ C
Display: 7″ intuative LCD touch screen display
No. of Product: 1000 maximum
Sample interval: Maximum 24 of 1 min to 999 hrs, 59 min
Printer interface: Serial port (via LAN) post script or embedded thermal printer (optional)
Connectivity: Ethernet, RS – 232 ,RS-485 USB
Bath size (L x W x H): 704 x 374 x 180 mm
Heater: 1 kW/230 VAC, material S.S. 304 with sensor
Dimensions ( W x L x H): 521 x 1150 x 663
Weight: 90Kg
Electric Power: 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp
No. of Methods: 1000 Maximum
No. of Reports: 50000 Maximum
No. of Audit Trial: 200000 Maximum
Time Range: 1 min to 999 hrs, 59 min
| Weight | 126 kg |
|---|
