Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • 7″ TFT touch screen display

  • LAN connectivity allows central printing

  • Multilevel security with password for 250 users with user programmable role

  • Alphanumeric data entry of product and user details

  • Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products

  • Programmable different aliquot volume for each sample interval allows variable dilution

  • Complies with USP, IP, Ph. Eur. and JP specifications

  • Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods

  • Molded clear water bath

  • Easy to empty and clean water bath with bottom drainage

  • Precise individual vessel centering system

  • Adjustable leveling of instrument

  • Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation.

  • Vibration free smooth motorized lift movement

  • Isolated temperature controller and water circulating pump (vibration-free & precise) with wake up and sleep modes which saves time and energy

  • 1000 programmable products

  • 24 programmable sampling intervals

  • 10000 test report storage

  • Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers

  • Designed to minimize routine validation

  • Programmable report template

  • Report for online validation of test, monograph, error log during the test

  • Programmable sample volume from 1 ml to 20 ml

  • Power failure detection and auto recovery facility

  • D’light technology enabling audio visual indication of instrument status

  • Finger print module

  • 250 users

  • Audit trial

  • E-signature

  • Auto dropsyncl

  • Rinse by purge

  • Auto dilution with stirring

  • intense rinse

  • Rinse by loopback

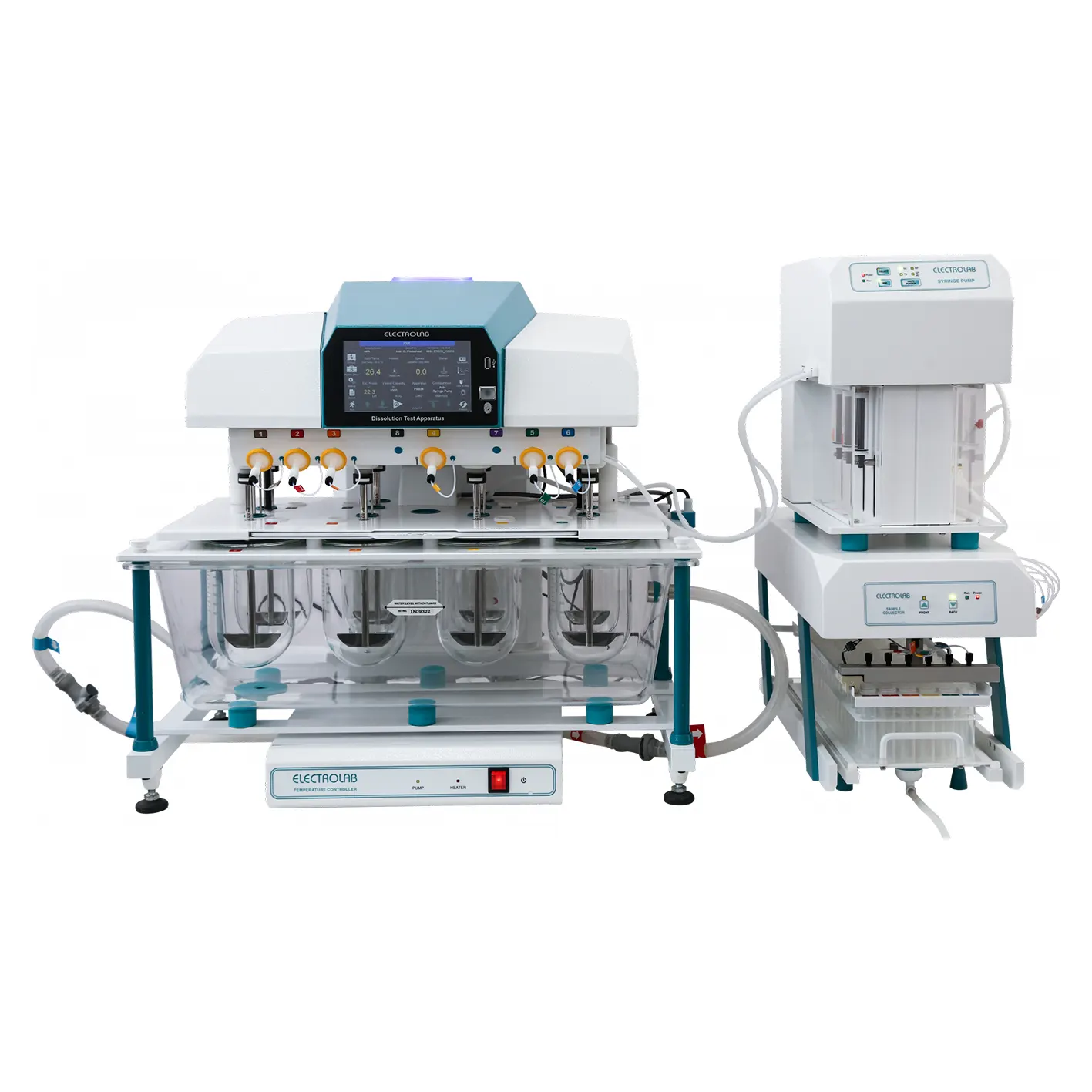

  • Model: TrustE-08 with syringe pump and sample collector (DC)

  • No.f stations: 08

  • Speed Range: 20 RPM – 300 RPM

  • Temperature Range: ± 0.5 RPM

  • Temperature accuracy: 20 deg * C to 40 deg * C (extended 10 deg * C to 40 deg * C and 20 deg * C to 55 deg * C optional)

  • Display resolution: ± 0.1°C

  • Product Storage: 1000

  • Display: 7″ TFT touch screen display

  • Test Report Storage: 10,000

  • Sample interval: 1 min to 999 hrs, 59 min

  • Interface Port: Ethernet, RS-232, RS-485

  • No. of syringes: Standard: 12

  • Stirner Drive: High performance BLDC drive (maintenance-free)

  • Vessel capacity: 150ml, 250ml, 1L

  • Water bath: One piece moulded clear

  • Bath capacity: 22 L

  • Temperature Controller: Heater: 1kW, SS 316 with thermal protection

  • Dimensions (W x L x H): 517mm x 1100mm x 690mm

  • Electrical power: 220/230 VAC, 50/60 Hz, 1.3 kW/G Amp
    110 VAC, 50/60 Hz, 1.3 kW/6 Amp

  • Weight: 141kg

Electrolab

Inspire Series

Play Video
Play Video
Weight 126 kg
