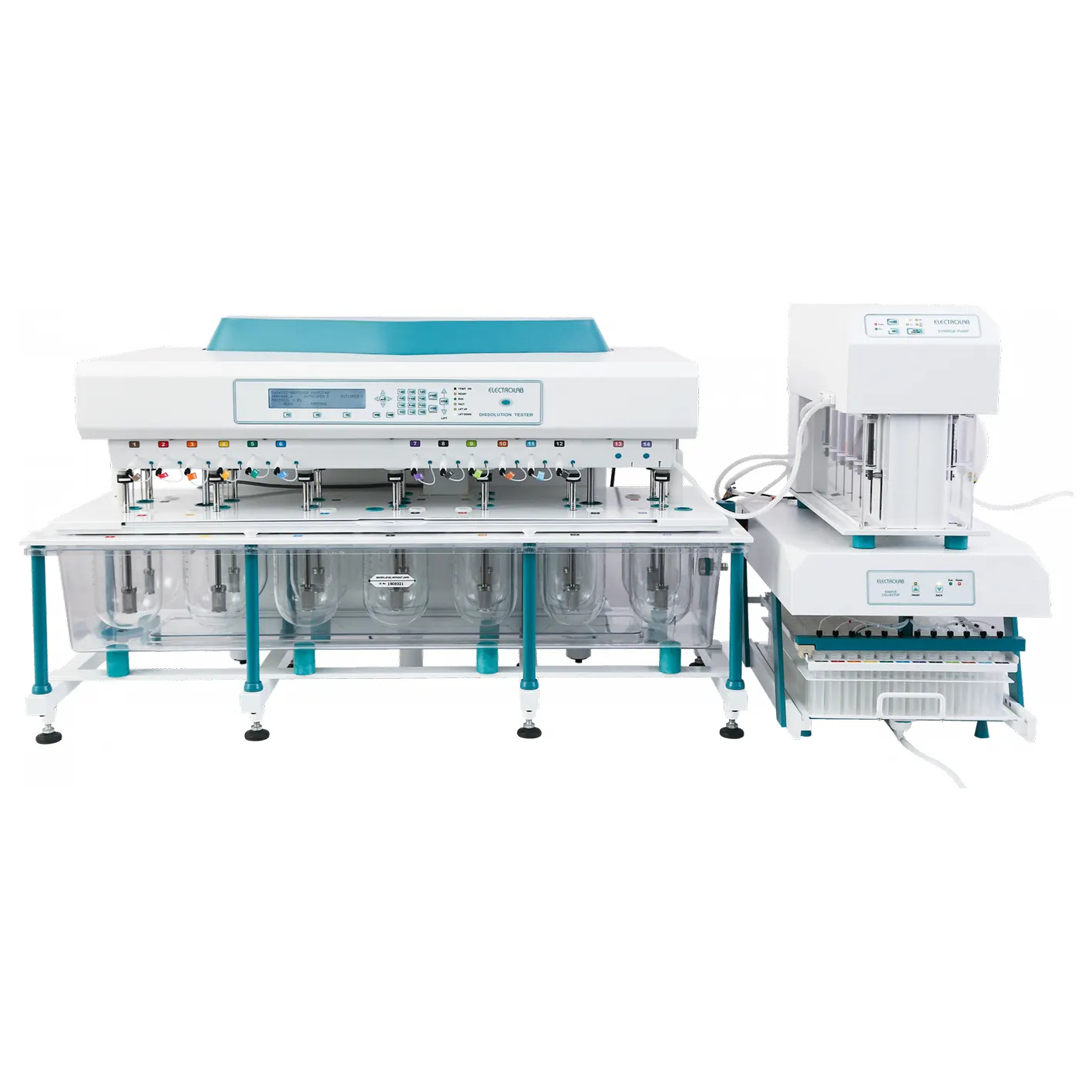

Dissolution Tester-Inspire-14 with Sample Collector (Dc)

₨ 0

Categories: Dissolution, Electrolab, Lab

Advanced dissolution tester with 40-character, 4-line LCD, multilevel security, alphanumeric entry. Features TimeAction™ for controlled release, complies with global standards, precise temperature control, and automated stirrer.

This product is currently out of stock and unavailable.

Description
Additional information
Reviews (0)

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

Features

LCD display of 40 characters and 4 lines for user friendly operation
Multilevel security with password
Alphanumeric data entry of product and user details
Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
Complies with USP, IP, Ph. Eur. and JP specifications
Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation
Clear water bath with metal top-plate
Precise individual vessel centering system
Adjustable leveling of instrument
Vibration free smooth motorized lift movement
Isolated water circulating pump for precise temperature control of the water bath
20 programmable protocols
16 programmable sampling intervals
Easy to empty and clean water bath with bottom drainage
Designed to minimize routine validation
Report for online validation of test, monograph, error log during the test
Programmable wake-up for temperature control
Programmable sample volume from 1 ml to 25 ml
Audio-visual indicators for system status
Power failure detection facility
Split rinse to avoid carry over
Replenishment
Individual vessel temperature monitoring

Specifications

Model: Inspire-14 with dc
Speed range: Variable speed from 20 to 300 RPM
Speed accuracy: +1 RPM
Temperature range: 20°C to 40° C (Extended range 10°C to 40°C & 20°C to 55°C optional)
Temperature accuracy: ±0.1°C
Display: 40 x 4 character backlighted LCD
No. of protocols: 20
No. of samples: 16
Sample interval: Maximum 16 of 1 min to 23 hrs, 59 min
Printer interface: Serial port
Printer supported: 80 column Dot Matrix printer
Interface port: RS 485 & RS 232
Vessel capacity: 150mL, 250mL, 500mL, 1L
Water bath: One piece moulded clear bath
Temperature controller: Heater: 1kW, SS 316 with thermal protection Sensor: RTD
Electrical power: 220/230 VAC, 50/60 Hz,1.3 kW/6 Amp 110 VAC, 50/60 Hz,1.3 kW/10 Amp
Dimensions (WxLxH): 521 x 1672 x 663 mm
Weight: 212 Kg
