Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • New larger LCD display of 40 characters and 4 lines for user friendly operation

  • Multilevel security with password

  • Alphanumeric data entry of product and user details

  • Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products

  • Complies with USP, IP, Ph. Eur. and JP specifications

  • Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods

  • Easy Snap-Fit™ shaft locking mechanism for positive engagement and wobble free operation

  • Printing through RS 232

  • Programmable Wake Up Facility for temperature to save man hours.

  • Bath temperature range between 20° to 40°C/20° to 55°C(optional) is controlled with an accuracy of :±0.10

  • Isolated water circulating pump for precise temperature control of the water bath.

  • Easy to empty & clean water bath with bottom drainage.

  • RPM range between 20 to 300 with an accuracy of ±1 RPM.

  • 20 programmable protocols and 16 programmable sampling intervals.

  • Instrument Accessories like paddle, basket & vessels are laser mark with serial numbers.

  • Reports for online validation of test, monograph and error log during the test.

  • Programmable wake-up for temperature control

  • Audio-visual indicators for system status

  • Power failure detection fadlity

  • Split Rinse to avoid carry over

  • Replenishment

  • Individual vessel temperature monitoring

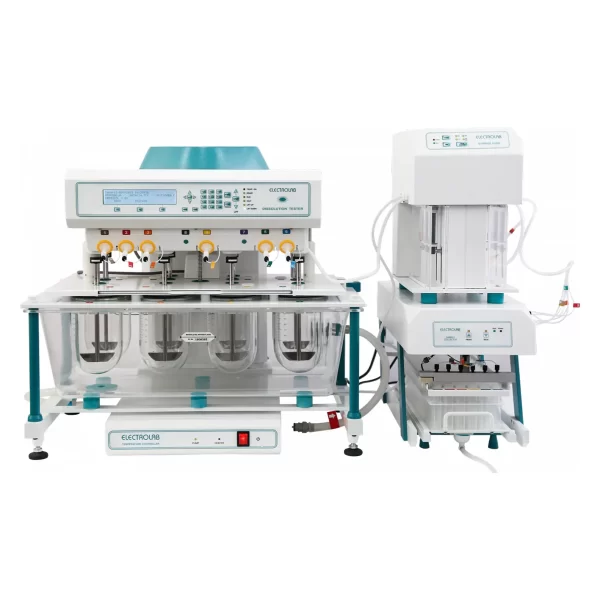

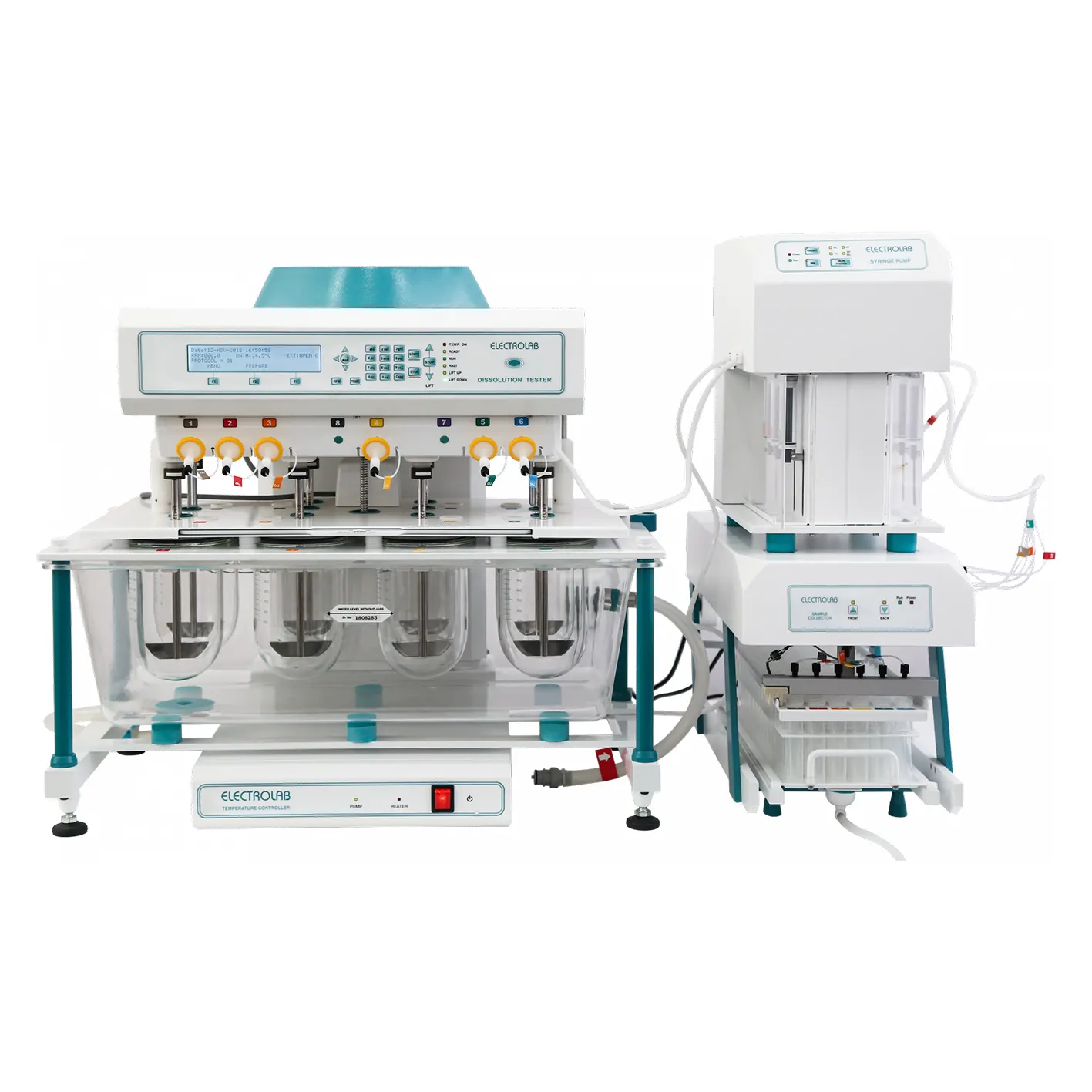

  • Model: Inspire-08 with sample cllector dc
  • Speed range: Variable speed from 20 to 300 RPM
  • Speed accuracy: +1 RPM
  • Temperature range: 20°C to 40°C
    (Extended range 10°C to 40°C & 20°C to 55°C optional)
  • Temperature accuracy: ±0.1°C
  • Display: 40 x 4 character backlighted LCD
  • No. of protocols: 20 maximum
  • No. of samples: 16
  • Sample interval: Maximum 16 of 1 min to 23 hrs 59 min
  • Printer interface: Serial port
  • Printer supported: 80 column Dot Matrix printer
  • No. of syringes (10ml): Standard: 6, Optional: 8 (25mL Optional)
  • Interface port: RS 485/RS 232
  • Water bath: One piece moulded clear bath
  • Temperature controller: Heater: 1kW, SS 316 with thermal protection Sensor: RTD
  • Vessel capacity: 150 ml, 250 ml, 500 ml, 1L
  • Electrical power: 220/230 VAC, 50/60 Hz,1.3 kW/6 Amp
    110 VAC, 50/60 Hz.1.3 kW/10 Amp
  • Dimensions ( W x L x H): 517 X 1100 X 665
  • Weight: 141 kg
Electrolab

Inspire Series

Play Video
Play Video
Weight 126 kg
