Instroduction:

The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.

  • Complies with USP, IP, Ph. Eur. specifications

  • Bathless heating (saves water, time, electricity)

  • Bathless disintegration tester is maintenance-free

  • Specially designed efficient heater plates for vessel, heats media quickly

  • Basket park-out from beaker

  • Disintegration time registration of individual tablets

  • Test results and validation gets printed

  • Individual motor and timer with external probe for each basket

  • Magnetically coupled basket for easy loadingbasket for easy loading

  • 20 Different users can loginprotocols

  • Date & Time Lock Facility

  • Model: EDI-2SA

  • Beaker: 1000 ml glass beakers (2 nos.)

  • Basket: 2 nos. each carrying 6 test positions (dimensions as per latest USP)

  • Guided disc: Perforated cylindrical disc 6 nos. in each basket (dimensions as per latest USP)

  • Printer interface: Centronics Serial port

  • Display: 20 x 4 LCD

  • Motor: Single shaft 6V DC motor 10 kg cm torque (2 nos.)

  • Illumination: Green LED

  • Power supply: 230 V AC, 50 Hz, 490 VA

  • No. of strokes: 30 ±0.5 strokes/min

  • Stroke height: 55 mm ±2 mm

  • Readable temperature range: 10° C to 45° C

  • Controlled temperature range: 15° C to 40° C

  • Temperature resolution: ±0.2° C

  • Dimension ( W x L x H): 360 x 372 x 573

  • Weight Net: 25 kgs, Gross 30 kgs

Electrolab

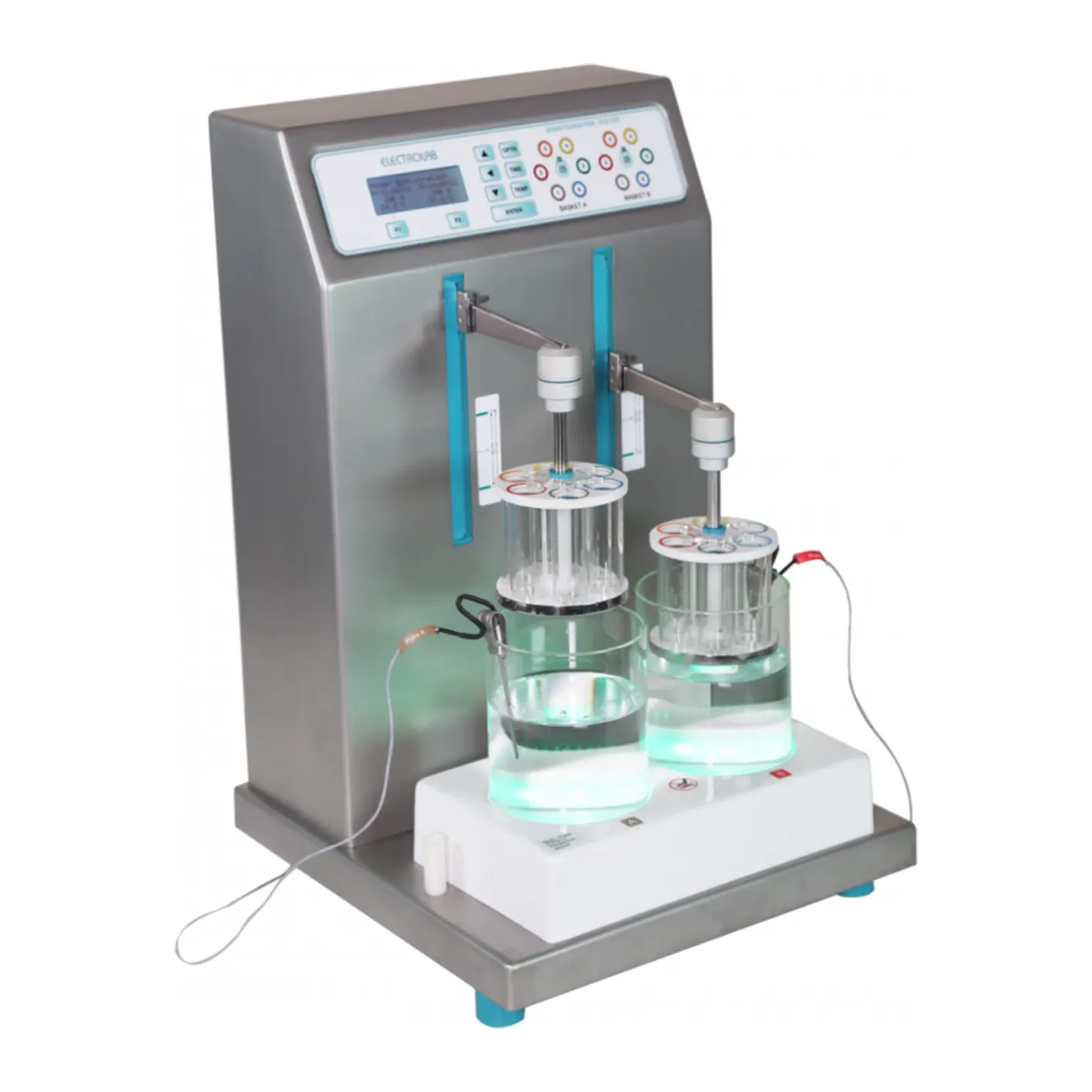

Disintegration Tester EDI-2SA

Play Video
Play Video
Play Video
Play Video
Weight 126 kg
