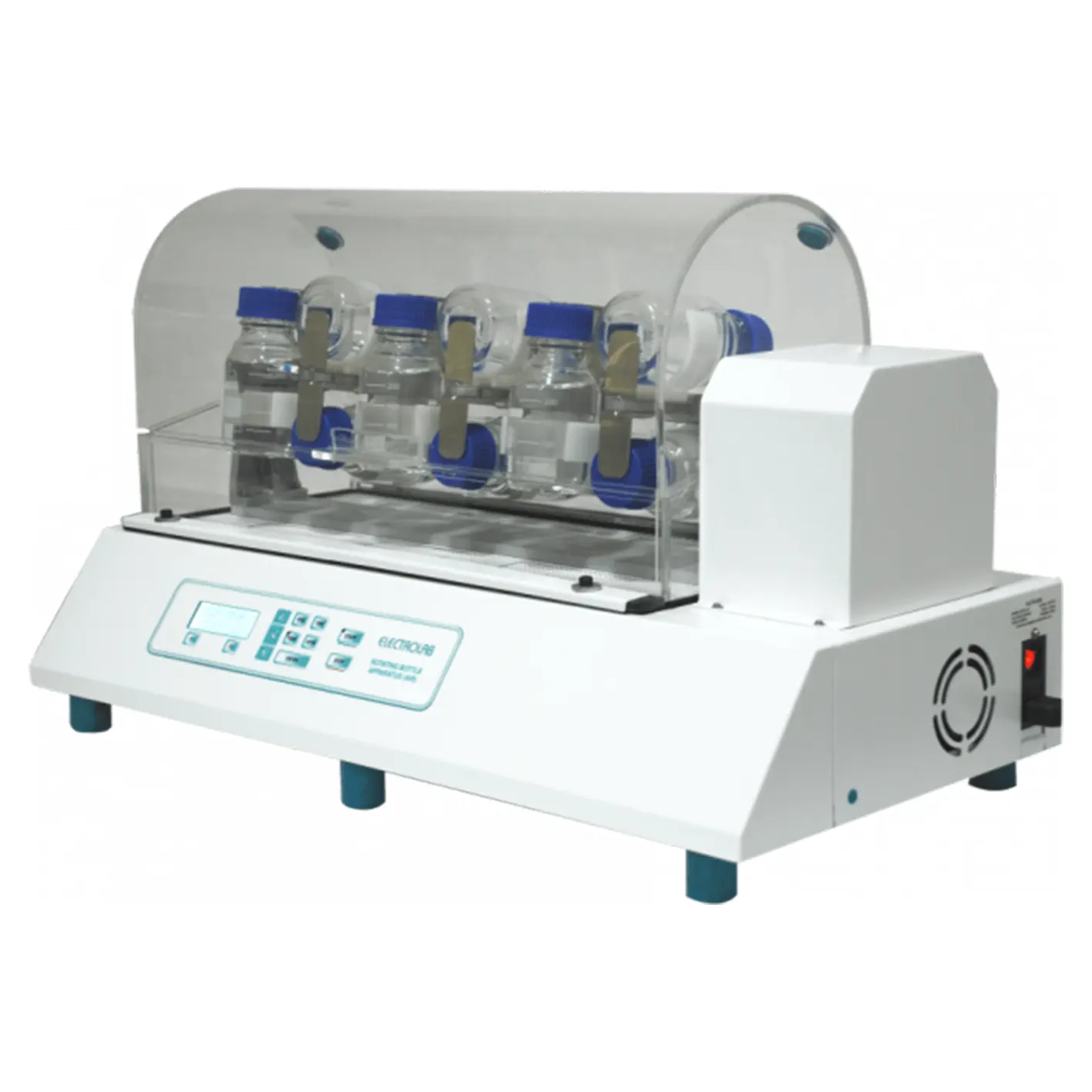

Bottle Rotating Apparatus Air Bath Heating System-ERB-Au
₨ 0
It supports a wide range of bottle sizes from 10 ml to 250 ml, accommodating up to 94 bottles across various protocols. It features precise speed control from 5 to 60 RPM, programmable forced air heating from 20°C to 60°C, and offers ease of use with snap-fitting bottle slots and automatic door lock detection for continuous 24/7 operation.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
Supports
42 bottles of 10 ml each
18 bottles of 50 ml each
22 bottles of 100 ml each
12 bottles of 250 ml eachPrecise speed control from 5 RPM to 60 RPM with soft start facility
Forced air heating system with programmable 0 0 0 0 temperature range from 20 C to 40 C / 20 C to 60 C
20 x 4 LCD display
24 x 7 continuous operation
10 programmable protocols
12 sampling intervals in each protocol, timer ranging from 1 min to 999 Hr : 59 min
Snap fitting of bottles facilitates easy replacement and removal
Impact resistant clear polycarbonate air bath to withstand high temperature
Automatic door lock detection
Easily changeable arm with various bottle capacities
Model: ERB-Au
Hood dimensions (L x W x H): 480 x 212 x 116 mm
Speed range: 5 RPM to 60 RPM/ 80 RPM (optional)
Display: LCD 20X4
Resolution: 1 RPM
Accuracy: + 1 RPM
Motor: BLDC motor (noise free)
Temperature range: 20◦C to 40◦C/ 20◦ C to 60◦C
Display: 20 ◦C to 40 ◦C/ 20◦ C to 60 ◦C
Resolution: 0.1 ◦C
Accuracy: ± 0.5◦ C
Heater: 3 KW/230V AC
Power supply: 230V AC ± 10%, 50 Hz / 110V AC ± 10%, 60 Hz
Dimensions ( W x L x H): 770 x 391 x 426
| Weight | 126 kg |
|---|
