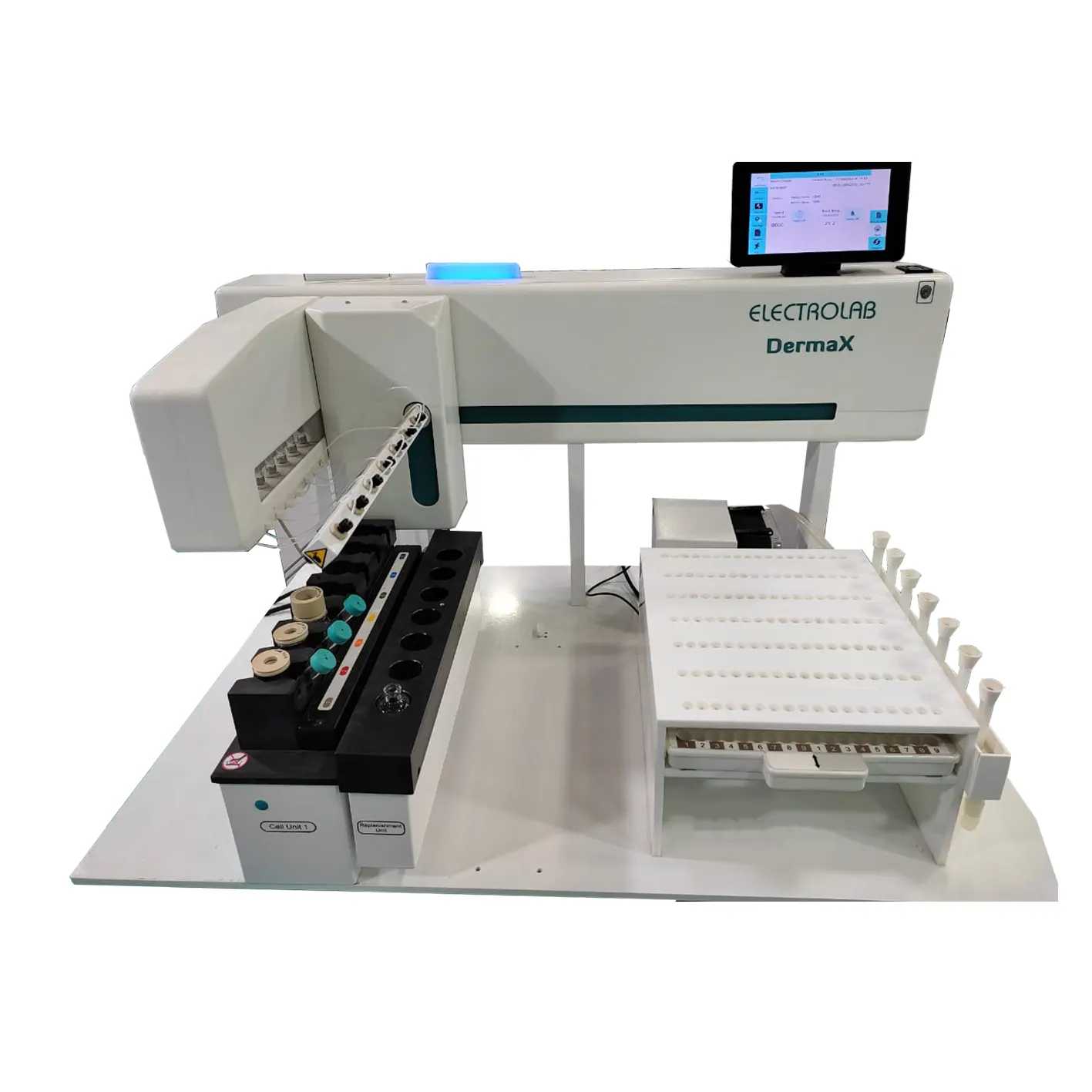

Advanced multi-cell system: Variable sizes, clear/amber robust glass cells with low evaporation caps. Swappable stirrers enable variable volumes. Features inert materials, individual cell monitoring, synchronous sampling, self-rinsing arm, gravity-based syringes. Includes HPLC vial sample collection, covered tray, sensor monitoring, audio-visual alerts, extensive protocol storage and user access.
-
Description
-
Additional information
-
Reviews (0)
The company has a well-trained production team supported by in-house CAD, software, hardware design engineers and well established vendors to support production target and a management that understands the importance of quality and timely delivery. This together with a flexible production process and cost effective operations has enabled it to be competitive, responsive and reliable. The company provides validation and prompt after sales service for its customers needs.
- Cells available in variable sizes,clear as well as amber
- Cells are robust made from precision glass
- Low evaporation cap attached to the cell
- Variable volumes possible due to swappable stirrers
- All components made from inert material
- Power saving heaters for each cell
- >60% contact between each cell and the heating block
- Automatic individual cell temperature and rpm monitoring
- Automatic synchronous sampling from the 7 cells and replenishment via the sampling arm
- Sampling arm self-rinsed between time intervals
- Specially designed towards-gravity sampling syringes
- Sample collection in regular HPLC vials
- Covered sample collector tray
- Sensors for identification of sample tray type and tray monitoring
- Automatic generation of audio-visual signals
- Increased protocol storage space, number of users and access levels
- Model: Auto Dermax 7 or 14
- No. of stations: 7 or 14
- Temperature: 20 – 45°C
- Heater: 200W
- Control accuracy: ± 1.0°C
- RPM: 200 – 1000
- RPM accuracy: ± 2 RPM
- Cell type: Small, Medium and Large (Clear and amber)
- Cell volume (depending on cell and stirrer type): 8 – 30mL
- Dosage volume: 0.25 – 6.2 mL
- No.of sampling intervals: 18 (9/cell block)
- Storage Tray: 18 * 7 rows (regular HPLC vials)
- Display: multi touch capacitive 7″ screen
- Protocol Storage: 1000
- Test Report Storage: 10000
- Security: Multilevel with password for 250 users with 10 user programmable role
- Report Printout: Ethernet, RS – 232
- Illumination: D’Light
- Biometric finger print: Optional
- Thermal printer: Optional
- Dimensions (L X W X H): 880 X 590 X 650 (mm)
- Weight: 60kg (approx)
| Weight | 126 kg |
|---|
